Wio-WM1302 Long Range Gateway Module (SPI) – EU868
A Semtech SX1302-based LoRaWAN gateway module designed for LPWAN gateway devices and long-range wireless communication applications.
₹2,499Indicative price · confirm before purchase
Order enquiry available Lead time depends on SKU availability.
Enquire about this product →Request a quote
Share your quantity and application details. Our team will contact you directly with availability, compatibility and delivery information.
ShippingConfirm delivery timeline and shipping charges with our team.
SupportContact us for SKU selection and technical compatibility.
TECHNICAL DETAILS
Specifications
Specifications below are transcribed from the supplied Wio-WM1302 datasheet.
| Baseband chip | Semtech SX1302 |
|---|---|
| Frequency band | EU868 (863–870 MHz) |
| Sensitivity | −125 dBm @ 125K/SF7; −139 dBm @ 125K/SF12 |
| TX power | Up to 26 dBm with 3.3 V supply |

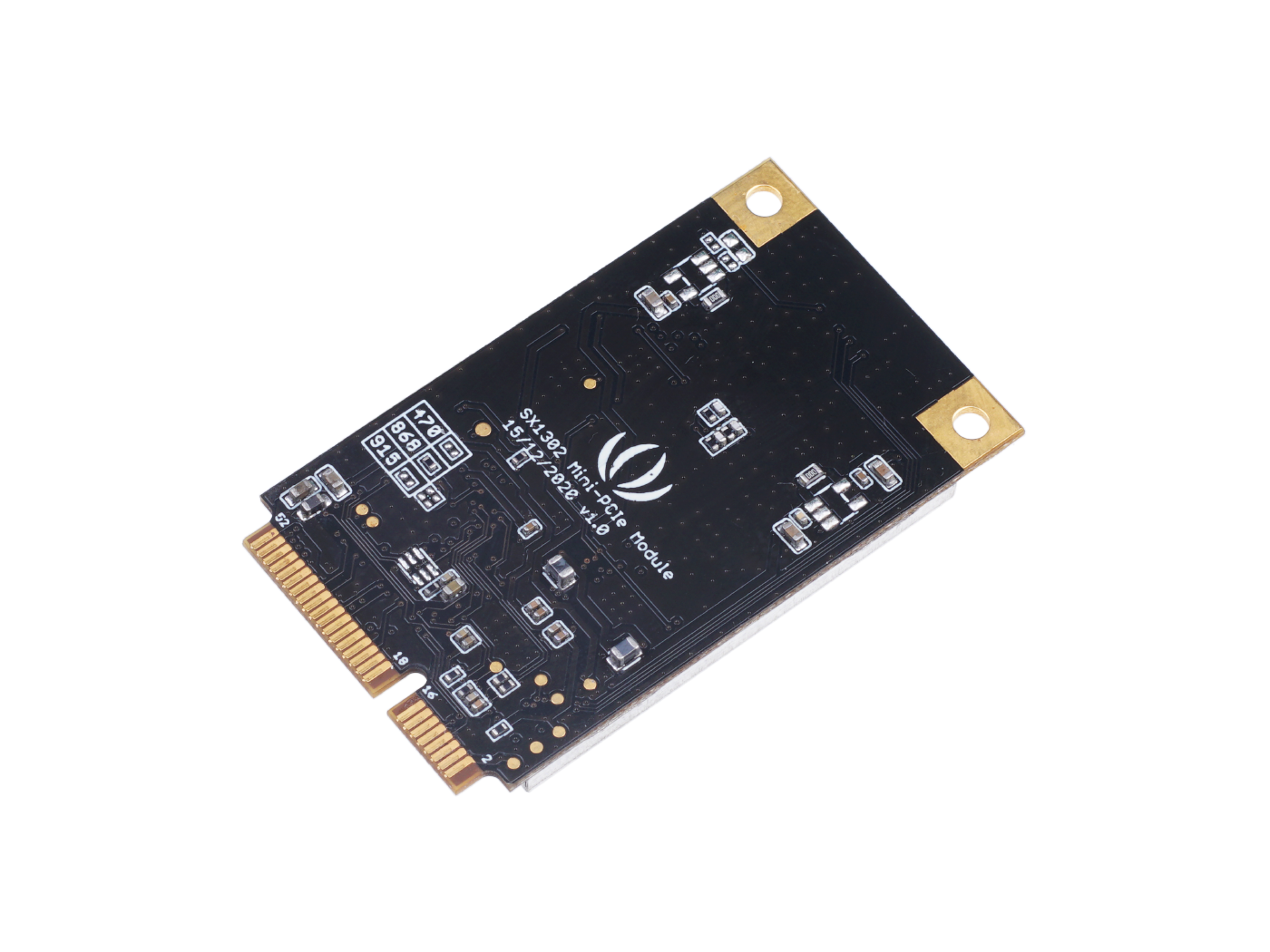

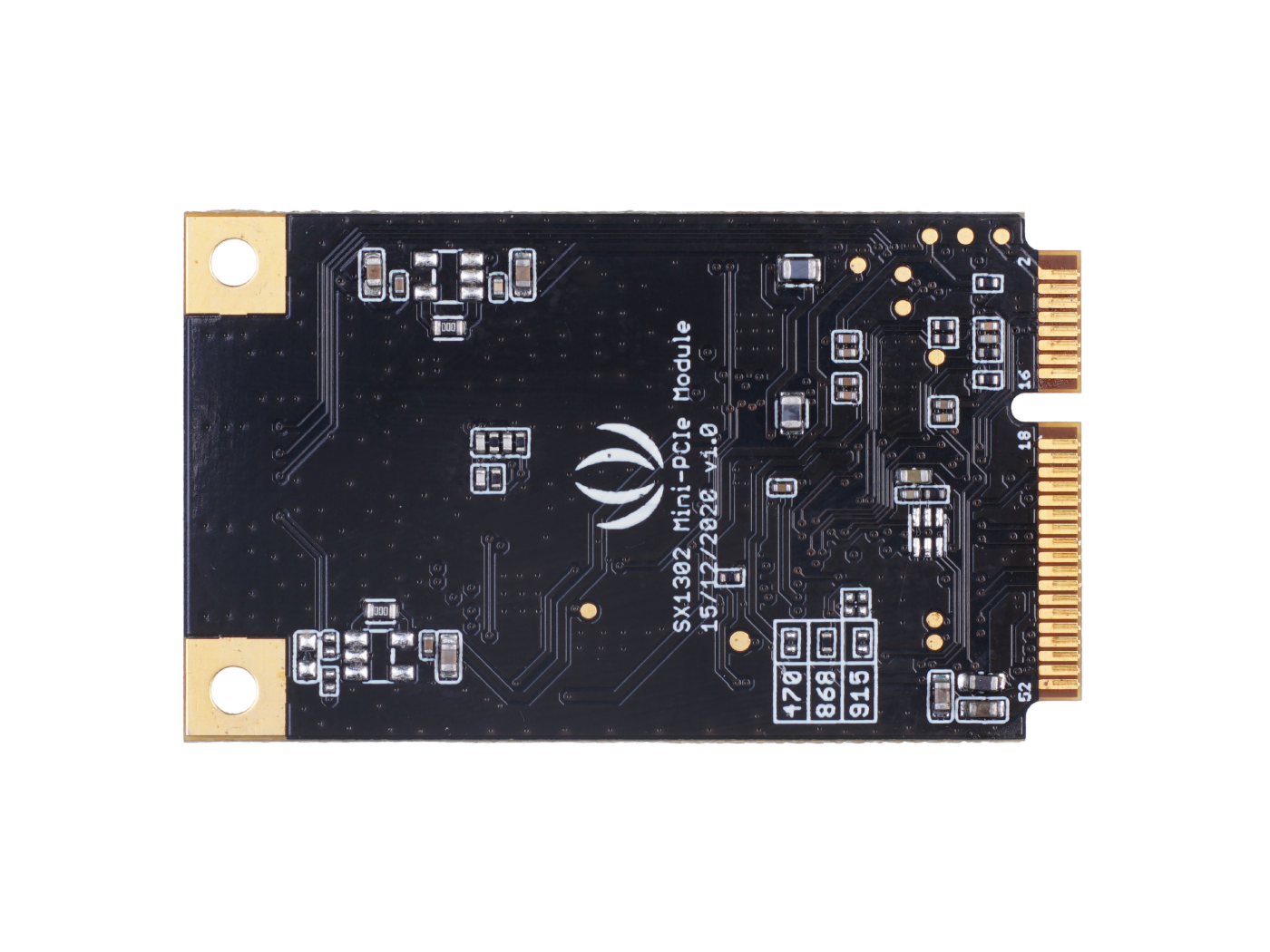

| Interface / form factor | SPI · Mini-PCIe · standard 52-pin golden finger |
| Antenna connector | U.FL |
| Operating temperature | −40°C to 85°C |

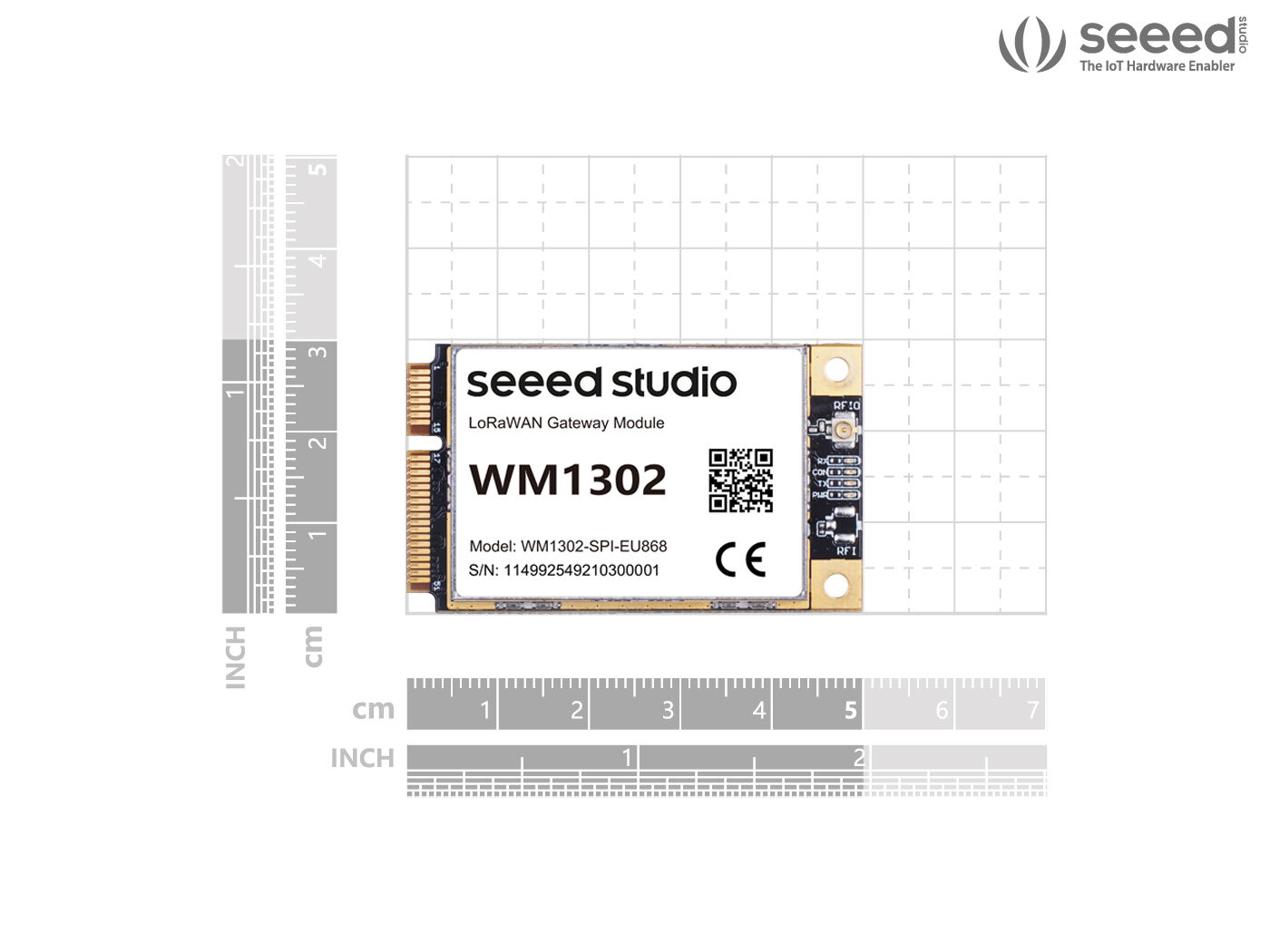

| Dimensions | 30 mm × 50.95 mm |
| SPI power consumption | Standby 7.5 mA · RX 40 mA · TX maximum 415 mA |
| Listen Before Talk (LBT) | Supported on SKU 114992549 with SX1262 |
| Certifications listed | CE (EU868), FCC ID (US915), TELEC (AS923) |
| Applications | LPWAN gateway development, long-range wireless communication, LoRa/LoRaWAN learning and research |
Important SKU note: The supplied datasheet identifies SKU 114992549 as the version with SX1262 and SKU 114993268 as the version without SX1262. It says the without-SX1262 SKU may have shorter lead times. Please confirm which variant you need before purchase.
